The ZORKA series, ranging from 1,000 to 6,000W, delivers high-quality cutting across a wide range of materials — metals with mirror-smooth edge quality, and non-metals such as die board, wood, ceramics, glass, plastic, and more.

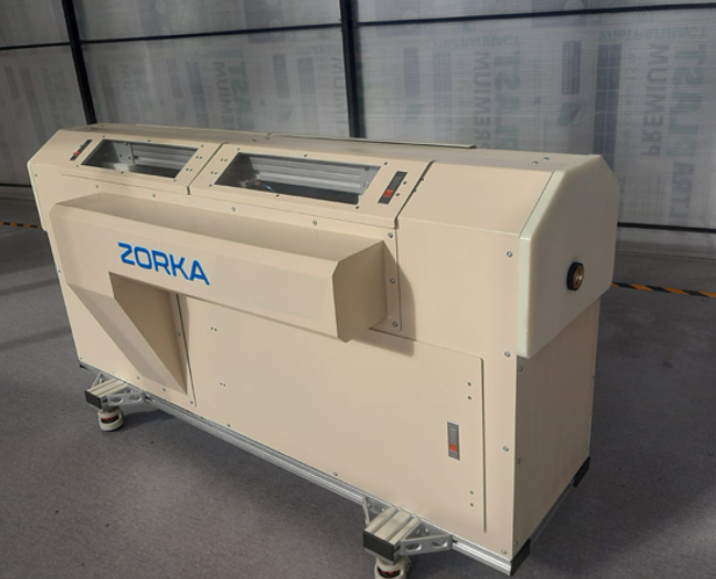

The ZORKA 2000 is Alkras's flagship industrial laser source, delivering up to 2,000W of continuous output power in proprietary "A" mode. It is built on a patented integral optical resonator with combination-plasma excitation, a fundamental design difference from conventional CO₂ and fiber lasers that produces measurably superior cutting results across every material class.
It handles work fiber lasers can't: it processes a wide range of materials while holding stable cut quality and full power across the entire service life of the system, without costly maintenance.
| Wavelength | 10.6 µm |
| Output Power: TEM00 | 700 W / M² < 1.2 / ⌀18mm |
| Output Power: TEM01* | 850 W / M² < 1.8 / ⌀20mm |
| Output Power: "A" Mode | 1,000 W / M² < 2.5 / ⌀22mm |
| Power Range / Stability | 5–100% / ±5% |
| Pulsing Range / Duty Cycle | 1–5,000 Hz / 10–100% |
| Electrical Power Supply | 230 VAC / 3-Phase · 6 kW |
| Gas Mix Consumption | 5 L/hr |
| Cooling | Water, 12 L/min |
| Dimensions (L × W × H) | 1,000 × 400 × 500 mm |
| Laser Weight | 50 kg |
The Flying Laser
Thanks to its compact size and low weight, the ZORKA 1000 mounts directly on the machine's X-Y gantry and moves together with the cutting head. This is the "flying" laser: the beam doesn't have to travel through a long optical path, it goes straight into the cutting head.
This lets the cutting table be practically any length and doesn't require high-precision tables. Many lower-grade tables are warped and not perfectly level, so some areas cut well and others don't: in a mirror path, the beam's travel distance changes with the head's position, so focus and cut quality vary across the table. With the laser mounted right on the gantry, the beam never goes through the mirror path, so cut quality stays consistent along the whole table.
| Wavelength | 10.6 µm |
| Output Power: TEM00 | 1,200 W / M² < 1.2 / ⌀15mm |
| Output Power: TEM01* | 1,500 W / M² < 1.8 / ⌀18mm |
| Output Power: "A" Mode | 2,000 W / M² < 2.5 / ⌀20mm |
| Power Range / Stability | 5–100% / ±5% |
| Pulsing Range / Duty Cycle | 1–5,000 Hz / 10–100% |
| Electrical Power Supply | 230 VAC / 3-Phase · 12 kW |
| Gas Mix Consumption | 10 L/hr |
| Cooling | Water, 20 L/min @ 5 atm |
| Dimensions (L × W × H) | 1,600 × 600 × 800 mm |
| Laser Weight | 100 kg |
Thickness at reference edge quality
Mild Steel 12mm · Stainless Steel 6mm · Aluminum 4mm

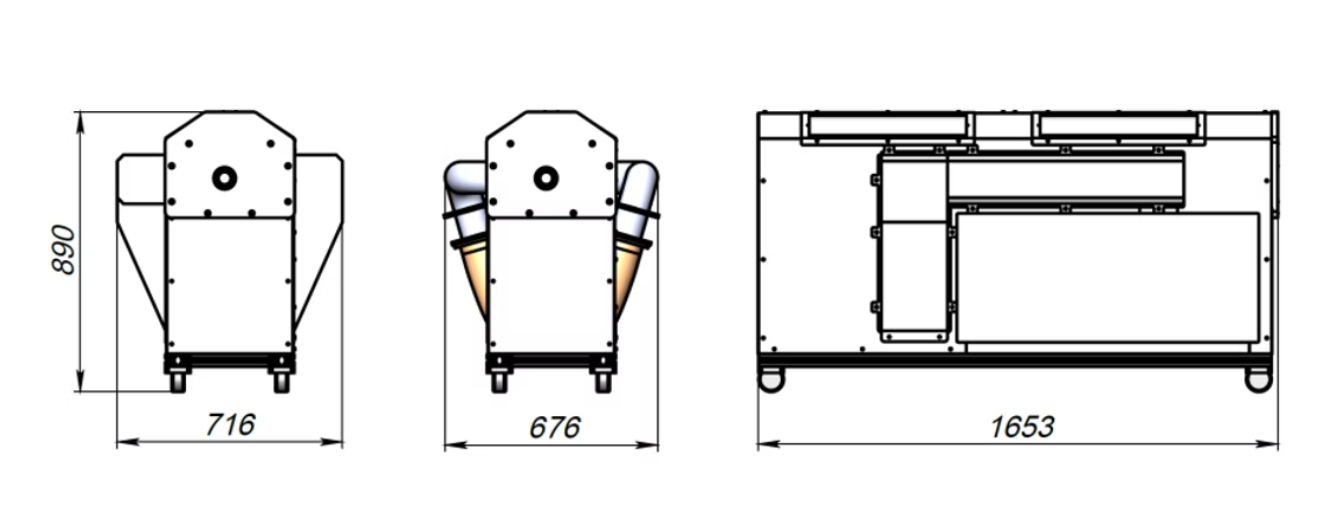

Compact Laser Source Dimensions (mm)
Designed for direct integration onto standard industrial cutting tables without structural modifications.
| Wavelength | 10.6 µm |
| Output Power: TEM00 | 2,500 W / M² < 1.2 / ⌀16mm |
| Output Power: TEM01* | 3,000 W / M² < 1.8 / ⌀20mm |
| Output Power: "A" Mode | 3,800 W / M² < 2.4 / ⌀22mm |
| Power Range / Stability | 5–100% / ±5% |
| Pulsing Range / Duty Cycle | 1–5,000 Hz / 10–100% |
| Electrical Power Supply | 230 VAC / 3-Phase · 24 kW |
| Gas Mix Consumption | 15 L/hr |
| Cooling | Water, 30 L/min |
| Dimensions (L × W × H) | 1,600 × 800 × 900 mm |
| Laser Weight | 150 kg |
Thickness at reference edge quality
Mild Steel 16mm · Stainless Steel 10mm · Aluminum 8mm
| Wavelength | 10.6 µm |
| Output Power: TEM00 | 4,800 W / M² < 1.4 / ⌀22mm |
| Output Power: TEM01* | 5,600 W / M² < 2.0 / ⌀24mm |
| Output Power: "A" Mode | 6,000 W / M² < 2.5 / ⌀26mm |
| Power Range / Stability | 5–100% / ±5% |
| Pulsing Range / Duty Cycle | 1–5,000 Hz / 10–100% |
| Electrical Power Supply | 230 VAC / 3-Phase · 45 kW |
| Gas Mix Consumption | 20 L/hr |
| Cooling | Water, 45 L/min |
| Dimensions (L × W × H) | 1,800 × 900 × 1,200 mm |
| Laser Weight | 200 kg |
Thickness at reference edge quality
Mild Steel 20mm · Stainless Steel 12mm · Aluminum 10mm
The ZORKA series lasers produce three distinct beam modes selectable by configuration. Each mode delivers a different intensity profile and beam diameter, allowing the system to be tuned for precision cutting, high-power throughput, or maximum efficiency depending on the material and application.

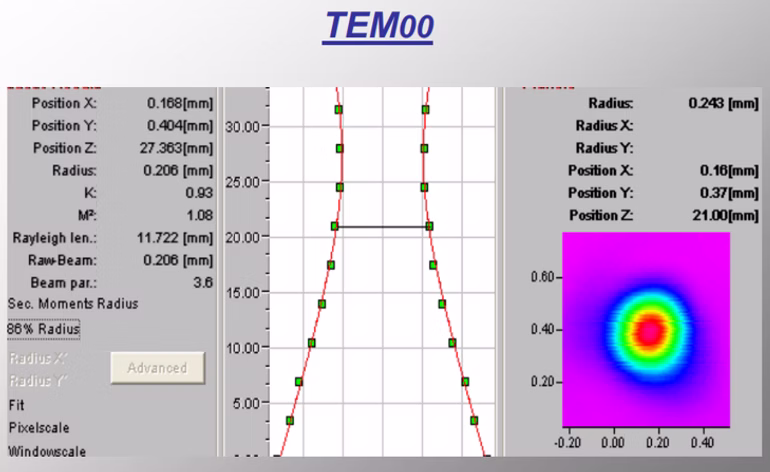

The highest beam quality mode. A single, tightly focused Gaussian spot with M² < 1.2 and 15mm output diameter. Optimal for precision cutting, thin materials, and applications where minimum kerf width and edge quality are the priority.

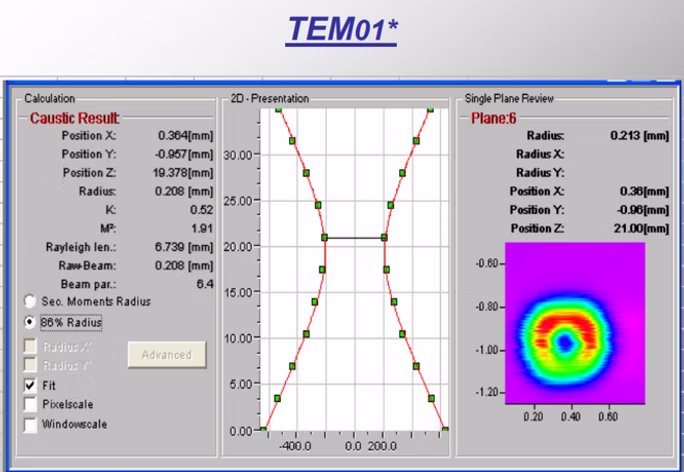

A donut-shaped intensity ring with M² < 1.8 and 18mm output diameter. Higher power than TEM₀₀ with distributed energy across the beam perimeter, preferred for thicker metals and applications where heat distribution across the cut zone improves edge quality.

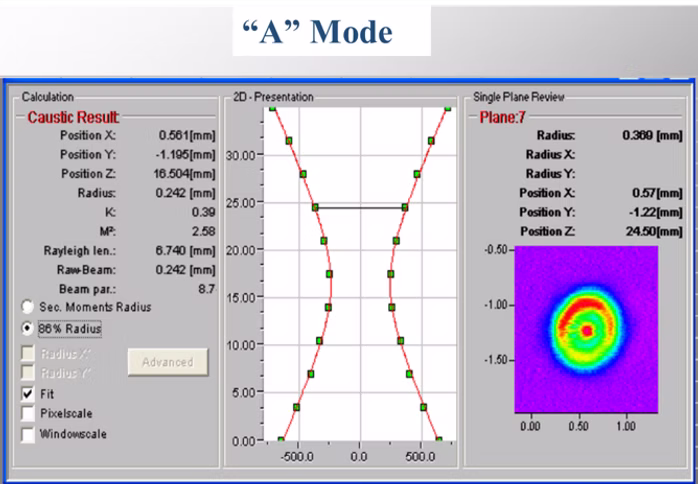

Full 2,000W output with M² < 2.5 and 20mm beam diameter. Used for maximum-throughput cutting of thick steel and aluminum, and for applications where raw power density is the determining factor in cut quality and speed.
Physical output across the three primary industrial materials at ZORKA 2000 output power.

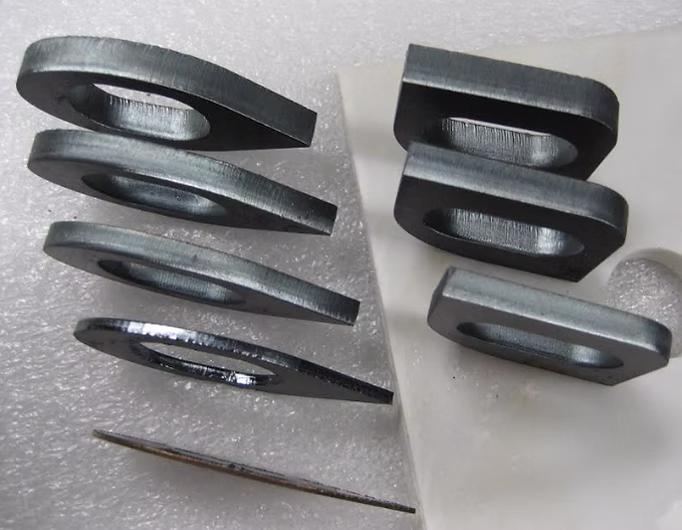

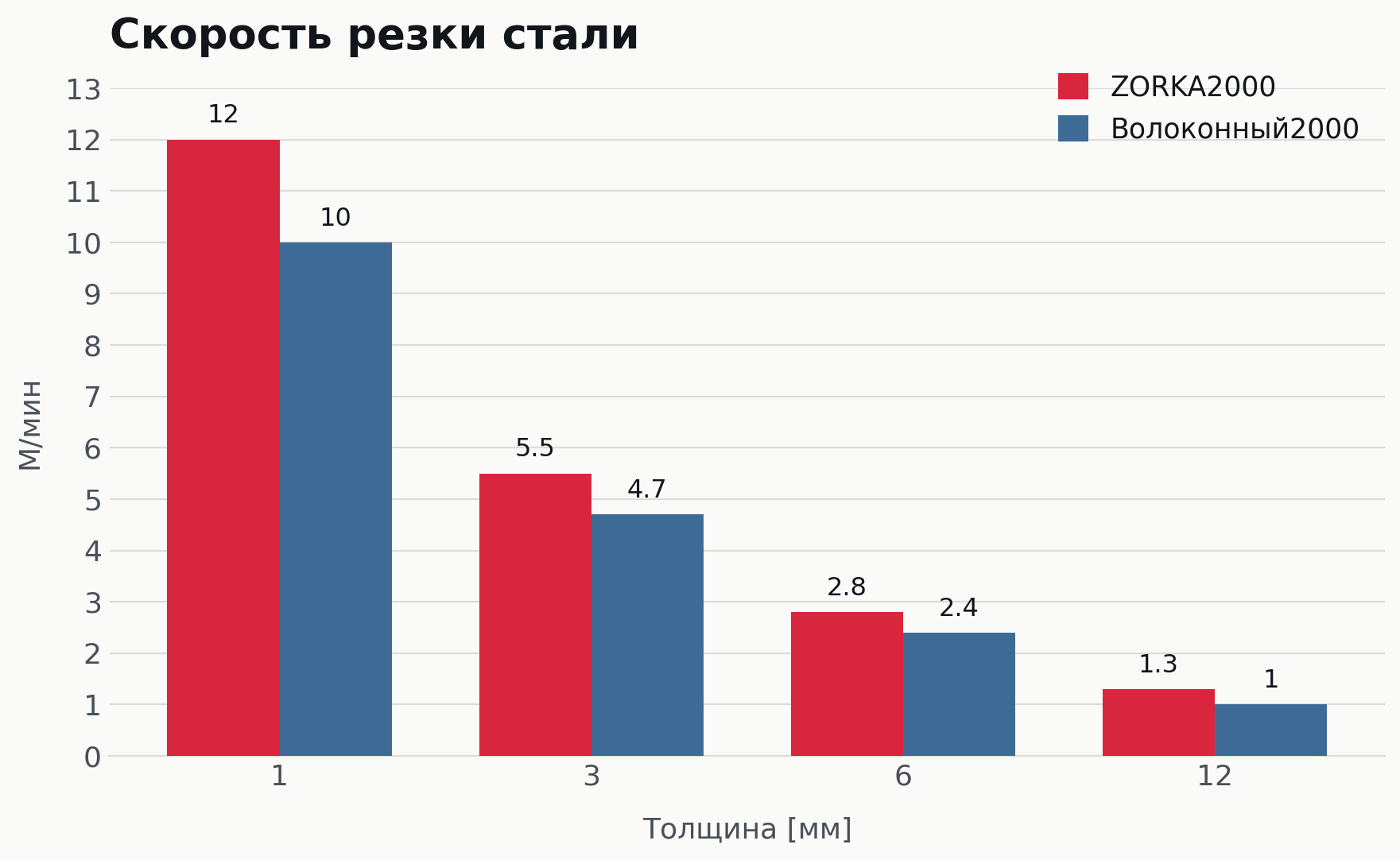

Clean kerf, minimal heat-affected zone. 10–20% faster than fiber lasers at thicknesses above 1mm.

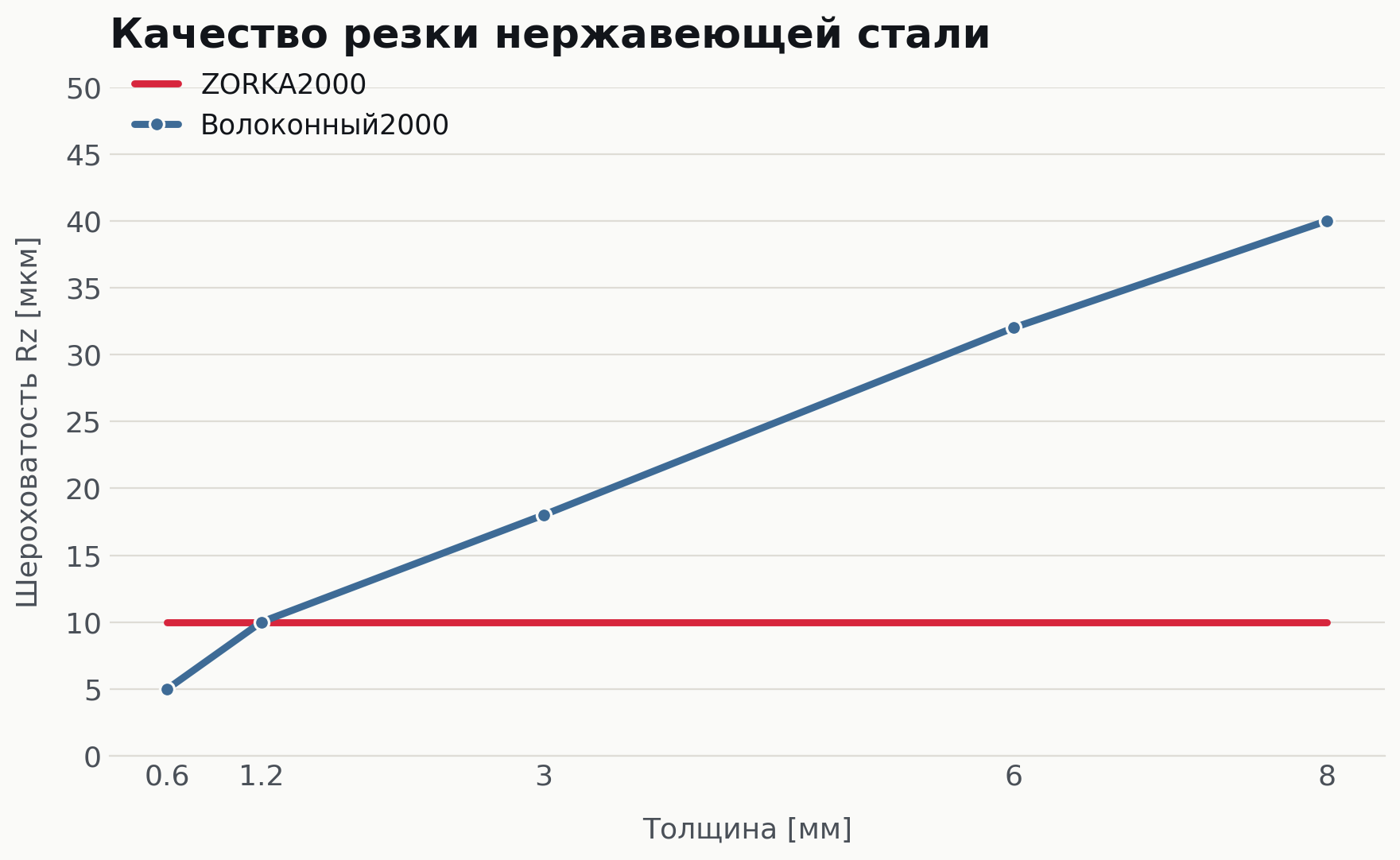

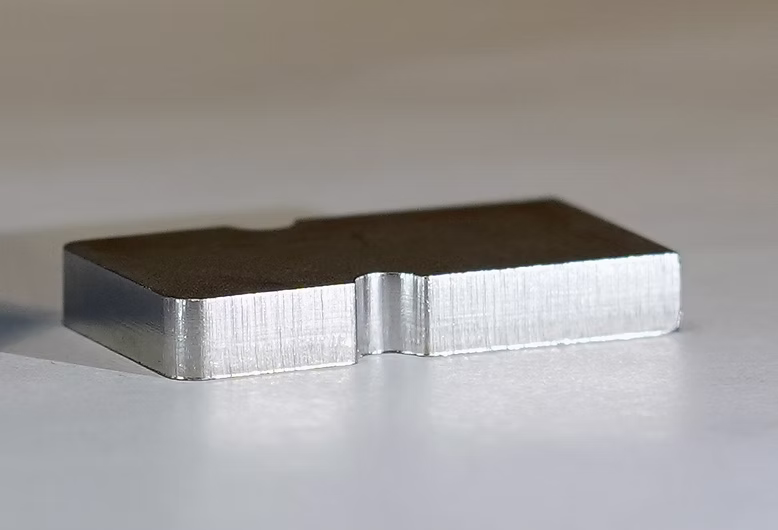

Mirror-smooth surface finish. Half the nitrogen assist gas consumption of comparable fiber laser setups.

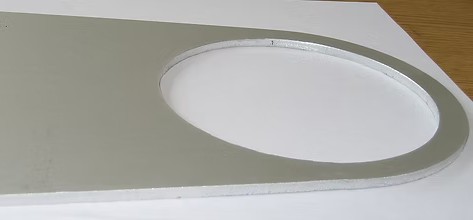

High-quality edge on aluminum and dural alloys.
Full Material Range
The ZORKA laser system is versatile enough to cut a wide range of materials: beyond metals, it delivers high-quality cutting of non-metals fiber lasers can't handle, such as Acrylic · Plywood · MDF · Cardboard · POM · Foam · Rubber · Leather · Plastic · Cork · Textile · Paper · Glass · and more.
